Product Name: Threaded 3 way ball valves
Body Main Material: 304 316L
Seal Material: SILICON, EPDM, PTFE, VITON, NBR, PPL
Product Introduction

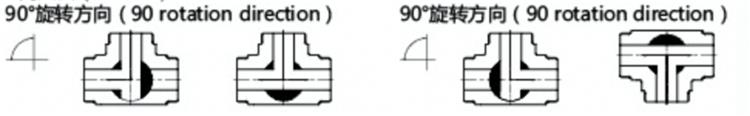

This Threaded 3 Way Ball Valves is a new type of valve, used in the pipeline to do cutting, distribution and change the flow direction of the medium. It is small in size and light in weight, easy to install. This ball valve has simple structure and low flow resistance. We can provide the Threaded 3 Way Ball Valves in different specifications. This product also has the characteristics of large circulation capacity, compact structure, good sealing performance, long service life and so on. It is economical, practical and easy to maintain. The Threaded 3 Way Ball Valves is widely used in petroleum, chemical, natural gas, electric power, metallurgy, food, pharmaceutical and other occasions requiring. In addition, we can choose special hardening treatment type according to the customer’s demand, providing a safer and more extensive application.
Specification
| Product Name: | Threaded 3 way ball valves |
| Body Main Material: | 304 316L |
| Seal Material: | SILICON, EPDM, PTFE, VITON, NBR, PPL |
| Normal Diameter | DN20-DN100 or 3/4″ 1” 1½” 2” 2 ½”3”4″ |
| Connected Type: | Tri clamp,welded,threaded,flange |
| Application: | Dairy, Beverage, Pharmaceutical, Milk& Chemical Industries |
Details Display
(DIN)
| SIZE | DN | Rd | A | E | F |
| DN25 | 25 | Rd58x1/6″ | 140 | 50 | 146 |
| DN32 | 31 | Rd65x1/6″ | 156 | 64 | 185 |
| DN40 | 37 | Rd78x1/6″ | 172 | 68 | 185 |
| DN50 | 49 | Rd95x1/6″ | 182 | 95 | 243 |
| DN65 | 66 | Rd110x1/4″ | 196 | 104 | 243 |
| DN80 | 81 | Rd130x1/4″ | 256 | 122 | 273 |
| DN100 | 100 | Rd160x1/4″ | 286 | 173 | 273 |
(SMS)
| SIZE | DN | Rd | A | E | F |
| 1″ | 22.4 | Rd40x1/6″ | 140 | 64 | 185 |
| 1 1/4″ | 28.8 | Rd48x1/6″ | 156 | 64 | 185 |
| 1 1/2″ | 35.1 | Rd60x1/6″ | 165 | 68 | 185 |
| 2 | 47.8 | Rd70x1/6″ | 182 | 73 | 205 |
| 2 1/2″ | 59.5 | Rd85x1/6″ | 196 | 95 | 243 |
| 3″ | 72.2 | Rd98x1/6″ | 225 | 104 | 243 |
| 4″ | 97.6 | Rd125x1/4″ | 286 | 173 | 273 |
Package Type:
1.) 1.1*1.1*1.1 m plywood case or suitable size
2.) Customers’ logo is available on package.
