Key Takeaways
Pipe annealing process improves the quality of metal pipes. By doing so, it softens the pipes, improves their ductility while at the same time releasing internal stresses. It is vital towards producing tough, serviceable materials.
The annealing process achieves this by employing a controlled heating and cooling regiment to alter the pipe’s microstructure. This new proprietary technique enhances its grain structure and optimizes overall machinability. Temperature and timing are very important since they are key to getting the most quality results possible.
Each annealing process—including induction, gas furnace, electric furnace and continuous vs. batch—brings its own benefits to the table. Choosing the correct process is a function of the pipe material, diameter, production quantity, and accuracy requirements.
Cutting corners on pipe annealing increases fragility of the material. This results in poor bendability/ formability, shorter service life, and lifecycle costs buried in material failures and waste.
Successful annealing calls for precision prep work, cooling control methods, and extensive quality inspection. Particular care must be taken with special materials such as stainless steel in order to prevent easily avoidable mistakes.
Today, new innovations such as automation and smart technologies continue to enhance process control, energy efficiency, and annealing quality. Safety and environmental impacts continue to safely operate at high temperatures while using less energy, is a major point of focus.

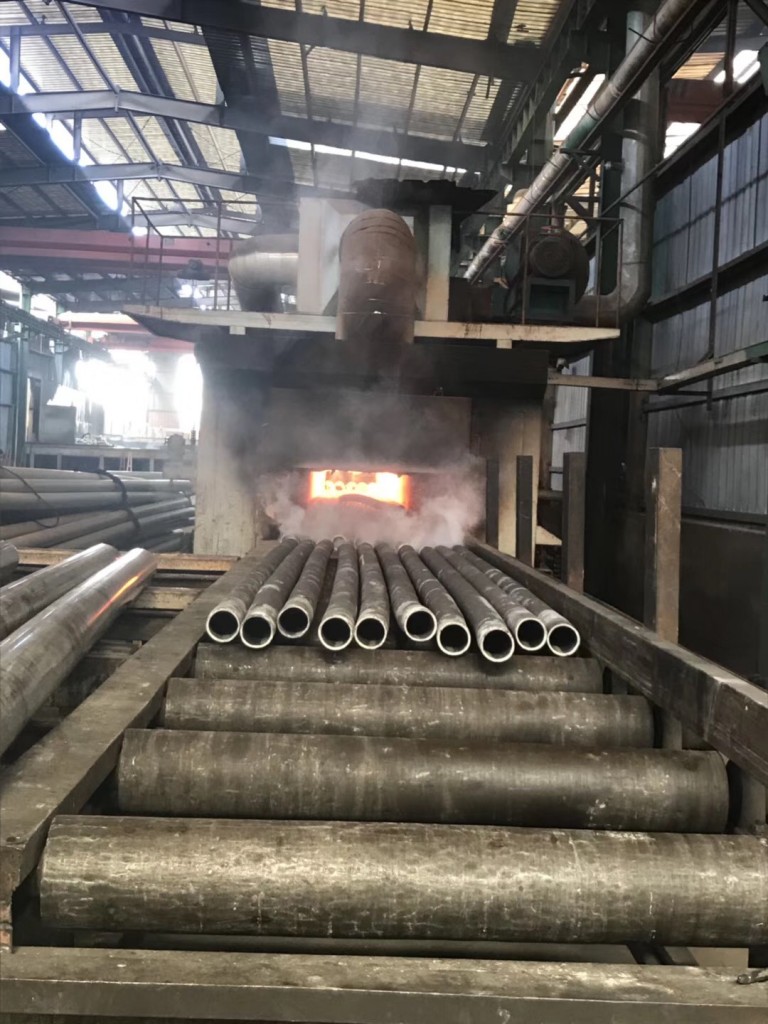

Pipe annealing is one of the most intensive heat treatment processes available. It increases ductility, strength, and durability of metal pipes and decreases internal stress.
First, the pipe is heated evenly to a temperature hot enough for the metal to soften without melting, typically above the metal’s recrystallization temperature. Then, cool it down at a controlled rate.
With regard to pipe, annealing improves the properties of structural material. This process improves their flexibility and resistance to cracking, which is ideal for harsh, high-performing environments.
It is widely used in sectors such as construction, plumbing, and manufacturing, where pipes need to endure different environments. Understanding the annealing process can help you select the right materials for your projects while ensuring long-term performance and reliability.
In this guide, we’ll walk you through its key methods, benefits, and real-world applications.
What Is Pipe Annealing?
Pipe annealing, known as pipe normalization or pipe normalization annealing, is a heat treatment process that improves the physical properties of pipes manufactured from steel.
Annealing is fundamental in the manufacturing and maintenance. Through careful temperature control, it improves metal workability and longevity. The commercial process is most commonly used in industries processing steel, copper, aluminum, and other metals.
Here’s what you need to know about pipe annealing and its advantages, which we explore in greater detail below.
1. Defining the Heat Treatment Process
Annealing means heating an alloy steel pipe to its critical temperature—which is usually around 20-30 degrees Fahrenheit above the material’s transformation point.
This temperature is closely monitored to ensure that the pipe does not overheat, though this temperature varies with metal composition. First, the pipe is heated to the required temperature and held at that temperature to allow for the even distribution of heat.
Then it is cooled slowly inside the furnace. This careful cooling process eliminates thermal shock and encourages a durable structure.
2. Why Annealing Is Absolutely Crucial
Roughly 80% of steel pipes are annealed, making it a critical and vital process. Without it, pipes lose their ductility, making them more likely to be brittle, or fail under stress.
It guarantees that pipes can withstand the mechanical and structural demands needed in industries such as construction, transportation, and energy.
3. Softening Metal for Easier Work
This technique breaks down hardness or tensile strength, rendering metals less brittle and therefore more malleable. For instance, if steel pipes become cold-worked, the metal becomes too hard to form and shape.
By softening the material through the process of annealing, it enables smoother machining, bending, or welding processes to occur.
4. Boosting Ductility and Toughness
All steels that can be hardened, such as those comprised and/or used in high-pressure pipelines, are tremendously affected. Annealing improves ductility which allows pipes to stretch or deform when a force is applied without shattering or fracturing.
Toughness is further improved, providing greater resistance to impact or shock loads.
5. Releasing Harmful Internal Stresses
These internal stresses from welding or casting lead to brittle pipe that can fail with time and age. Pipe annealing will relieve these stresses, eliminating the possibility of cracking or warping.
For demanding applications such as API pipe welding, this additional step provides the long-term peace-of-mind.
6. Refining the Pipe’s Grain Structure
Annealing removes any previous work done on the metal, re-organizing the metal’s microstructure to create a finer grain pattern.
Along with resulting in increased strength and uniformity, finer grains increase resistance to wear, something particularly important in highly abrasive environments, such as through oil pipelines.
7. Improving Overall Machinability
Machinability of pipes improves greatly because annealed pipes are easy to cut, drill, or customize.
This minimizes both production time and the wear on tools used, making the process highly cost-effective at scale.
The Science Behind Annealing Pipes
Annealing is a heat treatment process that enhances the material properties of pipes, making them more ductile and less brittle. Just as this process is critical for industries ranging from medical to defense, annealing pipes strengthens the pipe’s structural integrity, weldability and overall performance.
To know why this is all so important, it helps to understand the science behind how heat changes metal.
How Heat Transforms Pipe Microstructure
When pipes are annealed, increasing their malleability and ductility, heat is used to alter their internal structure at a microscopic level. The process relieves stresses that result from manufacturing processes, like welding or deformation, that can otherwise make the metal brittle.
Annealing softens the metal by letting atoms within its structure rearrange into an even alignment. In a welded steel pipe’s heat-affected zone (HAZ), annealing is indispensable. It heals the weld by returning the mechanical properties and reducing solidification, which in turn increases the strength of the weld.
Key Process Stages Explained Simply
Annealing happens in three distinct phases. During the recovery phase, dislocations can move and significant internal stresses are relieved, while the metal’s structure is otherwise unchanged.
During the recrystallization phase, new grains nucleate, consuming the deformed ones. Lastly, during the grain growth stage, the grains become larger and more stable, improving ductility. Each step is delicate and demands meticulous management of time and temperature.
Temperature and Time: Getting It Right
Temperature and time of annealing depend on the specific material being processed. Steel, for example, needs to be heated to 1,290–1,650°F, while aluminum needs much lower temperatures, at about 390–750°F.
Non-ferrous metals have a time-temperature curve that usually starts with annealing at about 50% of their melting point in absolute temperature (Kelvins). Careful heating and cooling, usually over a period of 30 hours, provide optimal results.
Material Differences in Annealing Needs
Every metal offers a unique reaction to the annealing process. Steel, aluminum, and alloys all need specific temperatures and hold times to get the desired characteristics.
This degree of customization provides unmatched reliability, no matter the application.
Exploring Different Annealing Methods
Annealing is a vital part of the metalworking process, especially in the steel pipe industry. This process enhances the material’s ductility, relieves internal stresses, and refines its microstructure, making it crucial for producing quality steel pipe and other steel products.
Induction Annealing: Fast and Focused
Induction annealing operates by using electromagnetic induction to heat the metal directly. This technique is very efficient and accurate, perfect for targeted treatment or small volume.
For example, with steel pipes, one may heat the material between 1,300°F to 1,650°F, whereby the recrystallization temperature is reached. The process is fast, sometimes finished within minutes, creating an ideal groundwork for production in high volumes.
Its energy efficiency with the precision to target selective areas minimizes waste while maximizing product uniformity.
Gas Furnace Annealing Fundamentals
This method uses a controlled gas environment to heat metals, usually with natural gas or propane as the heating source. The heat stays consistent and is highly controllable.
This characteristic makes it ideal for use with materials such as carbon steel, which typically requires hold times at temperatures ranging from 1,300°F to 1,650°F. This mode is most often used for full annealing.
The metal is heated well above its critical temperature and then cooled gradually, producing the greatest softness and increasing workability. Or as quickly as 70°F per hour to guarantee structural homogeneity.
Electric Furnace Annealing Insights
Electric furnaces are more precise in temperature control, which is important for processes such as isothermal annealing. Here, the alloy’s temperature-time curve controls the process, allowing precise recrystallization.
Aluminum alloys, for instance, are annealed at lower temperatures, usually in the range of 400°F and 750°F. Electric furnaces are common for spherification annealing, resulting in spheroid structures, improving machinability and fatigue resistance.
Continuous vs. Batch Annealing Compared
Continuous annealing is quick and efficient, making it the perfect option for large-scale operations. Batch annealing offers more flexibility for smaller volumes and multi-alloyed products.
Forming considerations such as hold times and material properties play big roles in determining which method to use. Steel and aluminum are usually processed using the two approaches, depending on production demand.
Choose the Right Annealing Technique
Factors such as material composition, part geometry, and manufacturing needs significantly influence the selection of the proper annealing technique in the steel pipe industry. Understanding how these variables interact is crucial for achieving the best efficiency and ensuring the superior quality of seamless steel pipes.
Match Method to Pipe Material
Each metal and alloy has a different response to heating and cooling treatments. Non-ferrous materials, such as aluminum and copper, generally need annealing temperatures at or below ½ of their melting point.
In the case of steel, techniques such as isothermal annealing depend on accurate temperature-time charts to achieve the optimal recrystallization temperatures. This is the most popular type of annealing for high-carbon steel.
This process intends to produce a spheroid structure and usually involves holding the material under its lower critical temperature for a few hours. For instance, stainless steel pipes often use full annealing as a technique, requiring gradual cooling to bring stability to their design.
Aligning the technique with the real material keeps the process focused on what’s important, which is optimizing the pipe’s mechanical and structural specifications of the pipe.
Factor In Pipe Size and Production Volume
Pipe size and production volume are two pertinent factors when identifying the proper annealing technique. As pipe diameters increase, longer heating and cooling times could be needed to achieve uniformity.
For instance, full annealing of a large steel pipe can consume several days. Meanwhile, cooling of small calibre pipes often takes only a few hours.
High-volume production is frequently best served by continuous annealing processes for improved productivity. Finding the right balance between size and volume will help you get both quality and productivity.
Weigh Cost, Speed, and Precision Needs
The decision of technique comes down to cost, speed, and level of detail needed. Complete annealing provides the greatest level of precision.
It is time consuming, usually requiring over 24 hours. For example, faster techniques such as continuous annealing can save time and lower costs, but some uniformity might be lost in the process.
Deliberating between these various considerations leads to the most successful result.
Dangers of Skipping Pipe Annealing
Pipe annealing, a crucial step in the steel pipe industry, involves heat treating pipes to ensure they maintain their integrity under stress or deformation. Neglecting this metal heat treatment process can lead to significant issues, impacting the quality and durability of the finished steel products.
Increased Brittleness Causes Failures
Without the annealing step, the pipes keep the internal stresses from the cooling process that make the material more prone to brittleness. This brittleness makes them much more susceptible to a failure occurring, particularly while under load or pressure.
It’s a force called “rohrendeneinfall,” which can occur almost the moment you cut pipe to length. This leaves you vulnerable to catastrophic failure and/or in just minutes or hours. As much as 90% of defects in extruded pipes are due to residual stresses. Here is where it is vital to relieve those stresses through annealing.
Problems Bending or Shaping Pipes
When it comes to shaping or coiling pipes, skipping annealing makes the process of handling or fabricating pipe more difficult. With residual stresses already present in the material, utility pipe can snap or crush during bending.
This is especially problematic when attempting to coil them into smaller radius locations. Faulty pipes do not only waste material, they cause costly production delays. We need to swap them out or tighten them up so we can keep things moving.
Reduced Service Life and Reliability
Residual stresses sometimes require years or decades to fully relax, resulting in compromised long-term reliability. Over time, these stresses can lead to cracks and leaks.
In extreme scenarios, they can result in catastrophic failure, dramatically reducing the expected service life of the pipes. This has the most drastic effects across every industry that depends on predictable pipe performance, from municipal plumbing to industrial applications.
The Hidden Costs of Neglect
Though the steel pipe industry recognizes that annealing does take time, up to several hours or even days, failure to properly execute the seamless steel pipe heat treatment process incurs much higher costs down the road. Potential losses in frequent replacements and lack of consistent product quality easily surpass the upfront cost of doing annealing right.
Perform Annealing Treatment Effectively
Annealing is a crucial heat treatment process in the steel pipe industry that enhances the ductility and strength of stainless steel pipes while reducing internal stresses. Employing specific approaches for the material and application ensures optimal results in the seamless steel pipe production.
Prepare Pipes with Pre-Heating
By pre-heating, you help to make sure that the temperature is consistent throughout your material, avoiding the possibility of thermal shock. The temperature may be as low as 500 °F or as high as 1400 °F, depending on the specific alloy.
As an example, stainless steel typically needs a higher preheating temperature than carbon steel. This process enables favorable microstructural alignment that sets the stage for recovery, recrystallization and grain growth to follow.
Correct pre-heating significantly reduces time needed for subsequent phases as well, increasing work efficiency.
Master Controlled Cooling Techniques
Cooling procedure is the key to successful annealing. Step 3 — Cool the alloys at a uniform rate. Raise temperature to no more than 68 °F an hour until it reaches 554 °F.
Beyond that point, how quickly you cool it doesn’t matter so much. This slowed down process avoids residual stresses from forming and allows for complete and constant microstructural alterations.
Quick cooling, in contrast, can lead to warping or inconsistent hardness.
Confirm Successful Annealing Results
The final step is evaluating the process, which includes checking for consistency in grain size and surface quality. This even final grain structure is a good sign that recrystallization and grain growth have been done effectively.
Further, non-destructive testing methods such as ultrasonic or hardness tests can be used to verify internal quality without damaging the pipe.
Avoid Common Annealing Pitfalls
If pre-heating is skipped or cooling is done too quickly, material failure is common. A second major mistake is not allowing enough heating time.
In properly sequenced settings, larger pipes can take three hours or longer for full structural change.
Special Tips for Stainless Steel Tubes
Stainless steel pipes are particularly sensitive to oxidation, so in the steel pipe industry, temperature and time must be tightly controlled. This is where the Joule effect comes in, as it efficiently heats the entire material in joules at about 752 °F, allowing for great uniformity.
Modern Advances in Pipe Annealing
Pipe annealing has experienced significant advancements, primarily fueled by a demand for increased efficiency, accuracy, and eco-friendliness in the manufacturing process. These innovations are revolutionizing how sectors of industry approach this vital process.
Imagine inserting artificial intelligence at key junctions that develop new opportunities to increase performance and augment product quality.
Automation Improving Process Control
Automation is another essential component in today’s pipe annealing, providing an efficient workflow and promoting uniformity throughout the process. Multiprocess Machines such as the Straightening Tube Annealer combine the capability to straighten and anneal in one integrated operation.
This process makes automation much easier with the additional benefits of improving dimensional accuracy, eliminating cracks, and increasing mechanical strength of the tube. Automated control systems will ensure the best standoff distances are always achieved.
We’re trying to maintain that gap distance of 0.200 to 0.300 inches between the induction heating coils and the tube surface. This close proximity allows for maximization of heat transfer efficiency, ensuring energy is saved.
By automating these adjustments, manufacturers reduce human error and achieve more reliable results, making automation a cornerstone of modern annealing practices.
New Tech for Better Quality
Accordingly, technological innovations have opened the door for more productive annealing systems. One amazing example is where they used three induction stations instead of four.
This transition cuts energy use by as much as 75% and frees up precious floor space. They’ve engineered single-coil systems that can heat entire tubes evenly.
With this technology innovation, their coils could go to a single coil. These innovations save energy and produce higher-quality products.
Modern advances in equipment such as the new Straightening Tube Annealing Machine integrally support that bright future. This strategic choice guarantees manufacturers’ initiatives for reliability and cost savings.
Safety and Environmental Factors
Safety and environmental factors are very central in the steel pipe industry, especially in pipe annealing. In other words, it’s not just the outcome that needs to be state of the art; the seamless steel pipe heat treatment process must also be efficient. Knowing how to protect against extreme heat and better control energy consumption is critical to preserving safety, ensuring operational performance, and reducing undue liability.
Handle High Temperatures with Care
The annealing process itself—which entails heating Ductile iron pipe to more than 1,800°F—is dangerous enough that the robust operation requires detailed processing by trained crews. Intense heat can degrade materials, heightening the chance of catastrophic failure in vital systems. Plastics are extremely valuable materials in the right applications.
This melting or burning is a failure of structural integrity at extreme heat or wildfires. In comparison, Ductile iron pipe is stronger and more resilient, making it a safer option in high-risk environments.
Wildfires are an increasingly dangerous threat to water infrastructure. After severe disasters, how effectively is emergency response managed? These indirect failures due to heat exposure can have catastrophic consequences, including loss of life and property.
Using ductile iron pipe virtually eliminates this risk. Its unmatched tensile strength is more than ten times that of plastics. Implementation of Sure Stop 350 Gaskets provides an affordable approach of pipe restraint for these types of pipes, bringing peace-of-mind for longevity.
Consider Energy Use and Impact
Ductile iron pipe isn’t just a green choice because it’s tough. As a natural, recycled and recyclable material, it fits in with the sustainability goals. Its durability results in fewer replacements, which lowers environmental effects.
For installations under hazardous environmental conditions, specialized gaskets offer extra protection as they help keep water systems safe and uncontaminated.
Conclusion
Pipe annealing is an important process in making sure that materials stay ductile, flexible and dependable. It’s more than just a performance bonus. It avoids expensive mistakes later on. By learning the process, you can determine which method is best. This design decision will further increase durability and help pipes better resist stressors. Neglecting this process can leave you with an increased risk of weak spots or failures that could’ve easily been prevented.
With every technological innovation, annealing has become safer, more efficient, and environmentally friendly. Whether you’re in construction, manufacturing, or any field that relies on dependable piping, it’s worth investing time in proper treatment.
Join us to get on the leading edge by selecting approaches that work best for you. To achieve the most edge-retention long-term, attention to detail in pipe annealing sets your equipment apart.
Frequently Asked Questions
What is pipe annealing?
Pipe annealing, a crucial heat treatment process in the steel pipe industry, softens metal pipes, relieving internal stress and enhancing their ductility, which ultimately boosts strength, flexibility, and crack resistance.
Why is pipe annealing necessary?
Pipe annealing is a key procedure in the steel pipe industry to alleviate internal stress and enhance the mechanical properties of metal pipes, ensuring their overall performance and longevity. This process avoids brittleness, making the finished stainless steel pipes suitable for the most stringent applications, including plumbing and construction.
What are the common methods of annealing pipes?
Common annealing techniques in the steel pipe industry include full annealing, stress-relief annealing, and isothermal annealing, chosen based on the seamless steel pipe material and application needs.
What happens if you skip pipe annealing?
Failure to perform pipe annealing in the steel pipe industry may result in brittle pipes with diminished strength and increased susceptibility to cracks or failure, leading to higher maintenance expenses and decreased pipe longevity.
How can you choose the right annealing technique?
The right technique in the steel pipe industry will vary based on the pipe material, desired mechanical properties, and application. Consulting with a metallurgical expert can help you refine the technique and achieve the best results possible.
Are there safety concerns during pipe annealing?
Yes, safety should definitely be a priority in the steel pipe industry. Working with high temperatures and hot materials requires proper equipment, ventilation, and protective gear to safeguard workers’ safety and prevent accidents during the metal heat treatment process.
What are the benefits of modern advances in pipe annealing?
Recent innovations in the steel pipe industry enhance productivity, accuracy, and sustainability. Technologies such as induction heating with controlled atmospheres offer uniform repeatability while improving the performance of stainless steel materials.
