Key Takeaways
- ASTM A269 is an important specification for seamless and welded austenitic stainless steel tubing. For commercial service, it ensures known and verifiable quality and safety across all general service applications. Having a grasp of its applicability helps one choose appropriate materials for both low- and high-temperature conditions.
- TP304 and TP316L, two widely utilized stainless steel grades covered by ASTM A269, provide different advantages. The elevated molybdenum content of TP316L increases its corrosion resistance, making it ideal for marine and other hostile environments. Conversely, TP304 provides a more budget-friendly alternative without compromising performance.
- Corrosion resistance is, therefore, a very important consideration in choosing any material. TP316L is more effective than TP304 in chloride-rich environments because it has better resistance to pitting, while TP304 is more appropriate for less corrosive environments.
- Yield and tensile strength are critical factors in the performance of TP304 and TP316L. These mechanical properties have a tremendous influence on their usability in many industrial applications. Through the use of proper mechanical testing, structural integrity and reliability are ensured.
- Industries including chemical processing, food and beverage, pharmaceuticals, and oil and gas commonly use TP304 and TP316L tubing. Their long-time use reflects these materials’ durability, versatility, and compliance with extensive safety testing requirements.
- At the same time, environment, exposure, required temperature, and cost should be considered in material selection. TP304 stainless steel has a lower price point. Long-term value and performance in more difficult applications favors the use of TP316L.
ASTM A269 TP304 and TP316L cover seamless and welded stainless steel tubing. These tubes have been established to be resistant to general corrosion and suitable for low-temperature service.
TP304, widely recognized for its durability, offers excellent resistance to oxidation and corrosion, making it suitable for common industrial uses.
TP316L has additional molybdenum which improves its resistance to chloride environments. This makes it the ideal choice for harsh marine or chemical environments.
Both grades are ASTM compliant. This ensures uniformity of quality and performance in the pharmaceutical, food processing, and petrochemical industries.
That’s why understanding these critical differences is imperative for industry professionals. It empowers them to make the best decision for their unique application, for reliability and efficiency across all their projects.
What is ASTM A269?
ASTM A269 is the most commonly recognized standard specification that covers general seamless and welded austenitic stainless steel tubing. It is more positively suited for general corrosion-resisting applications and thermal exposure environments, whether the application requires low or high temperature service.
By outlining specific material and manufacturing standards, the ASTM A269 standard ensures the same high quality is maintained across industries. It’s similar for key industries such as chemical processing, oil and gas, and power generation.
Scope of ASTM A269
ASTM A269 is the standard specification for stainless steel temporary tubing used for general services. You’ll see these applications in heat exchangers and condensers.
They include a wide array of other equipment that requires high corrosion resistance and stable, predictable performance in extreme temperatures. Sizes are prescribed in the standard with an inside diameter of 0.25 inches and larger.
It calls for nominal wall thicknesses of 0.020 inches or heavier. These dimensions are just a few of the evolving parameter details currently shaping compatibility and long-lasting performance in extreme conditions, be it high temperature or cryogenic (subzero).
Covered Stainless Steel Grades
The usual grades contained in this standard are TP304, TP316, TP304L and TP316L, well-known for their austenitic microstructure. These grades are particularly prized for their corrosion resistance and mechanical properties.
TP304 and TP316L perform best in resisting pitting and SCC. This commercially valuable quality ensures they’re ideal in extreme chemical industry and marine applications.
Austenitic stainless steel provides outstanding workability and weldability, adding to its versatility.
Key Requirements of the Standard
ASTM A269 requires extensive mechanical testing, such as tensile and flattening tests, to ensure the quality of the tubing. Adherence to stringent chemical composition specifications guarantees uniform performance.
Appropriate heat treatment is a necessary step to ensure best corrosion resistance and structural integrity. It involves heating the metal up to at least 1900°F and then quickly cooling it.
ASTM A269 TP304 TP316L Overview
ASTM A269 is most commonly known for its grades such as TP304 and TP316L. These seamless and welded austenitic stainless steel tubes are widely used throughout many industries and environments that require corrosion resistance.
These grades are truly the workhorses of the stainless steel industry, accounting for close to 70% of the market because of their versatility and wide availability. Both TP304 and TP316L come with distinct characteristics that serve different applications and requirements.
1. Understand TP304 Composition
TP304 stainless steel has an extremely favorable chemical structure with approximately 18% chromium and 8% nickel. This exceptional mix offers very effective protection against oxidation and very effectively endures average corrosive environments.
Due to its lack of molybdenum, its utility in high-chloride environments is compromised. Even so, TP304 outperforms in milder environments, offering optimal structural integrity throughout a broad temperature spectrum.
2. Explore TP316L Composition
The addition of 2–3% molybdenum in TP316L greatly improves its corrosion resistance, especially in chloride-rich environments. Its excellent alloying elements, such as increased nickel content, enhance its ability to resist pitting and crevice corrosion.
This property makes TP316L a great option for marine applications or environments with severe chemical exposure.
3. Compare Corrosion Resistance
TP316L stainless steel, particularly the ASTM A269 seamless stainless steel tubing, excels in more severe environments due to its molybdenum content, providing an added advantage against chloride-induced corrosion in industries like chemical processing and offshore applications.
4. Evaluate Mechanical Properties
Both grades provide superior mechanical characteristics. TP304 has a tensile strength of approximately 73,000 psi.
TP316L comes with slightly lower strength but superior ductility and toughness, which makes it suitable for more demanding applications.

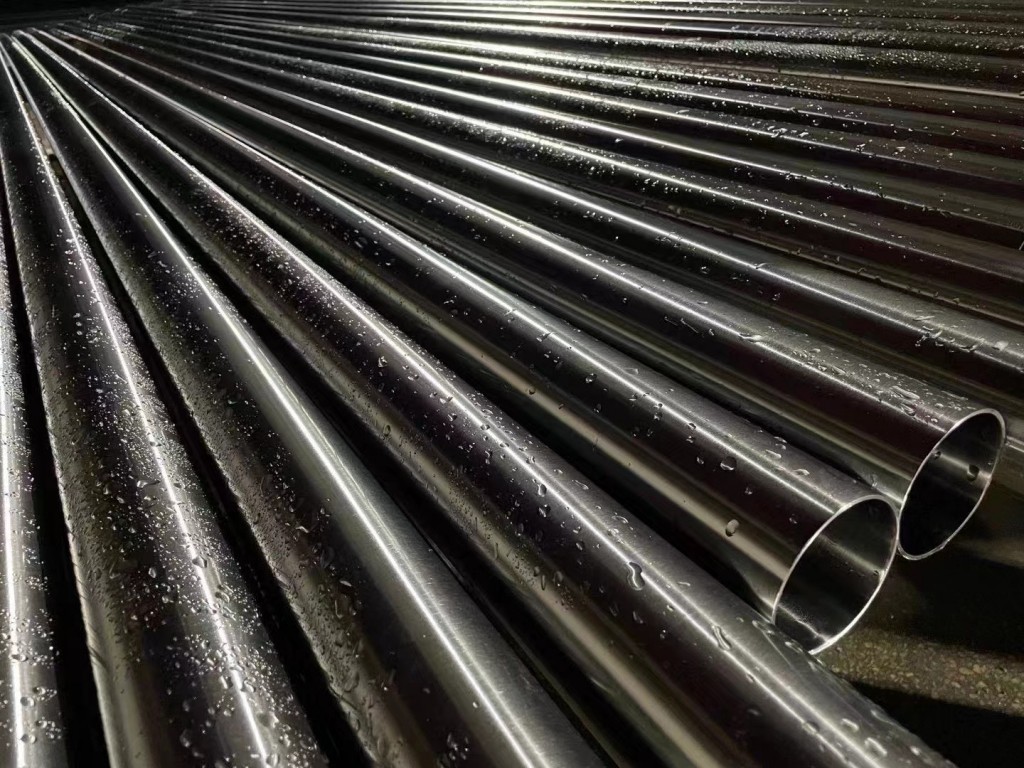

ASTM A270 TP304 TP316L: Sanitary Tubing
In all sanitary applications, ASTM A270 specification tubing is required, especially in industries such as biopharmaceutical, semiconductor, food and beverage industries where hygiene is paramount. This specification ensures that tubing is maintained free from contamination and possesses adequate surface finish.
It provides excellent weldability that creates great mechanical properties, increasing its suitability for food, beverage, and pharmaceutical applications. Because of the emphasis on sanitation, ASTM A270 tubing is essential for protecting product quality and safety.
Key Features of ASTM A270
ASTM A270 tubing includes very tight dimensional tolerances and high surface finishes that are important in avoiding bacterial contamination. The standard mandates a uniform, nonturbulent interior surface.
It has to be polished to a minimum Ra (roughness average) of 20 microinches to minimize residue accumulation. Non-destructive testing, including eddy current testing, is performed on 100% of the tubes to verify structural integrity and detect imperfections.
Manufactured to comply with ASTM A270 and 3A sanitary standards, our tubing is designed to provide reliable performance in the most demanding industry applications. Sanitary tubing is available in diameters from 1/8 inch to 36 inches, with wall thickness ranging from 0.04 inches to 2.36 inches.
Differences from ASTM A269
When ASTM A269 applies to general-purpose stainless steel tubing, ASTM A270 focuses on sanitary applications. It points out that improved surface finishes and extra layers of certification are required.
This involves stamping the tubing with standards, manufacturers, and production information. These distinctions make certain that ASTM A270 sanitary tubing complies with the elevated standards required for environments that demand so much.
Applications in Sanitary Environments
Often utilized in the dairy, brewing, and pharmaceutical industries, ASTM A270 tubing meets rigorous sanitary standards to keep products pure and free from contaminants.
TP304 and TP316L grades exhibit excellent resistance to a variety of corrosive media, helping provide safety and reliability in the long term.
ASME SA213 TP304 TP316L: Boiler Tubing
ASME SA213 is a key standard for seamless and welded boiler tubing. It is most commonly known for high temperature applications, such as superheaters, condensers, and heat exchangers. With sizes ranging from 0.405 inches to 24 inches in diameter and wall thicknesses between 0.04 inches and 2.36 inches, these tubes are tailored for demanding environments requiring strength and corrosion resistance.
TP304 and TP316L materials must undergo rigorous testing and evaluation, providing assurance of dependability under high-pressure conditions at temperatures reaching 1900°F.
Focus of ASME SA213 Standard
The ASME SA213 standard emphasizes material properties, including a density of 0.283 pounds per cubic inch, ensuring durability under intense conditions. Extensive inspection, including tensile and flattening tests, ensures adherence, which is crucially important for safety in boiler design.
Select TP304 or TP316L to increase efficiency. Their combined superiority in high corrosion resistance and high-temperature strength makes them extreme for expertly suited application industries such as petroleum, where they account for 80% of the world consumption.
High-Pressure, High-Temperature Applications
Boiler tubing has to hold up under extreme conditions of pressure and heat. Mechanical properties, including creep resistance, are essential for failure avoidance. These tubes are critical in industries such as aviation, nuclear, and chemical.
Their strength under the most severe circumstances makes sure we’re able to continue doing business without a hiccup.
Distinctions from ASTM A269
In contrast to ASTM A269, which is intended for general applications, ASME SA213 is focused on boiler systems that demand highly detailed material specifications. Physical testing ASME SA213 testing focuses on high temperature properties.
ASTM A269 covers a broader spectrum of service conditions under less rigorous requirements.
TP304 vs TP316L: A Detailed Comparison
While TP304 and TP316L are both austenitic SS commonly used in similar applications, there are significant differences. These differences are rooted in their chemical makeup, corrosion resistance, and mechanical attributes.
These differences have a major impact on their fitness for purpose for different applications. Below is a table summarizing key properties:
Property | TP304 | TP316L |
|---|---|---|
Chromium Content | ~18–20% | ~16–18% |
Molybdenum Content | None | ~2–3% |
Carbon Content | ~0.08% | ~0.03% |
Corrosion Resistance | Moderate | Higher (resistant to pitting) |
Strength-to-Weight Ratio | Higher | Moderate |
Thermal Conductivity | Higher | Moderate |
Ductility | Higher | Moderate |
Stress Corrosion Cracking | Moderate | Higher |
Price | Lower | Higher |
Chemical Composition Differences
Specifically, TP316L has a higher molybdenum content. This improvement greatly increases its resistance to pitting and crevice corrosion, making it perfect for marine and chemical settings.
TP304, with its higher carbon content, delivers superior strength, but it poses the risk of carbide precipitation in high-temperature environments. High chromium content in TP316L increases its oxidation resistance.
Corrosion Resistance in Specific Environments
TP316L’s exceptional resistance to seawater and acidic environments makes it the material of choice in offshore applications, as well as the pharmaceutical and food industries.
TP316L, though better suited to more aggressive environments, is not ideal for heat exchangers because it has lower thermal conductivity.
Mechanical Strength and Durability
TP304’s higher ductility makes it a better choice for applications that will be bent or formed.
TP316L’s excellent resistance to stress corrosion cracking guarantees longevity in high-stress environments, including those in the aerospace and chemical processing industries.
Cost Analysis and Availability
TP316L’s higher cost reflects its enhanced properties, often preferred (85% users) for durability.
TP304 continues to be an economical, functional substitute for applications with lower corrosive conditions.
Applications Across Industries
ASTM A269 TP304 and TP316L stainless steel tubing act as vital components in multiple industrial sectors. Their precision, strength, and corrosion resistance properties make them the most sought after. These expandable materials structurally standout and shine for their versatility, meeting multifaceted requirements of industries where long lasting concentration and performance is essential.
Below, we dive into their applications across industries.
Chemical Processing
One of the most important applications where TP304 and TP316L work is the chemical processing sector’s ability to handle corrosive substances. Their strong resistance to oxidation and chemical wear renders them suitable for highly demanding equipment including reactors, pipelines, and heat exchangers.
Its excellent corrosion resistance, particularly in chloride rich environments (like seawater), makes TP316L a long-lasting choice even in extreme operating conditions. This incredible reliability greatly reduces routine maintenance, all while carrying some of the most aggressive chemicals safely and securely.
Food and Beverage
The food and beverage industry is dependent on these materials due to their compliance with the very rigorous sanitary standards. Applications TP304 and TP316L are commonly used in the manufacturing of products like dairy equipment, brewing tanks, and beverage dispensers.
Their non-reactive surface protects against contamination, maintaining the purity of consumable products. TP316L’s increased resistance to corrosion makes it an attractive option for cleaning-in-place (CIP) systems and acidic environments.
Pharmaceutical
Pharma manufacturing largely relies on TP304 and TP316L tubing for sterile manufacturing processes. These polymers are deployed in bioreactors, cleanrooms, and transfer lines where contamination must be avoided at all costs.
Their compatibility with hard scrub-cleaning protocols and resistance to microbial growth helps meet today’s strict regulatory and cleanliness requirements.
Oil and Gas
In the oil and gas industry, TP304 and TP316L deal with the most intense pressures and temperatures. They’re crucial for subsea pipeline infrastructure, floating drilling rigs, and hot water district energy systems.
This availability is an advantage, given the robust durability and corrosion resistance of TP316L makes this stainless steel a material of choice in offshore environments and sour gas applications.
Water Treatment
Water treatment systems take advantage of the durability of these materials in filtration, desalination, and water distribution applications. Their impressive resistance to corrosion from chlorine and other chemicals increases the service life of key components, such as evaporators and condensers.
This robustness allows for effective water treatment.
Fabrication and Welding Considerations
Good fabrication and welding practices are the focus of successful work with ASTM A269 TP304 and TP316L grades. Collectively, these practices ensure optimal performance, durability, and resistance to corrosion, which are all extremely costly liabilities to taxpayers.
Other industries, notably instrumentation piping, are very dependent on these grades. In reality, 90% of their application is derived from joining process piping, isolation valves, and metering installations. Their structural integrity depends on precise fabrication techniques and stringent welding practices.
Welding Techniques for TP304
TP304 stainless steel, which is usually produced in seamless, welded, and ERW configurations, needs particular methods to ensure proper welds. Pre-weld preparation, including cleaning to eliminate contaminants, is essential to avoid inclusions and other welding defects.
Post-weld treatment, such as annealing, can mitigate this effect by largely restoring corrosion resistance through the reduction of residual stresses. We can only reduce corrosion. Weld sensitization is one enemy we have to conquer.
Such considerations necessitate controlling heat input and using stabilized filler metals. ERW TP304 tubes, for example, are welded using high-voltage electric current. Their accuracy and rigidity render them ideal for rigorous environments.
Welding Techniques for TP316L
TP316L poses special challenges because of its low-carbon composition, intended to reduce carbide precipitation. Choosing suitable filler materials, including matching molybdenum-bearing alloys, is very important to preserve corrosion resistance under oxidizing conditions.
Preventing cracking and maintaining uniformity are critical. Maintaining interpass temperatures along with methods such as TIG welding can help operators achieve strong welds.
Post-Weld Treatment
Fabrication processes such as passivation and/or annealing may be important to restoring corrosion resistance post-weld in austenitic steel tubing. Cleaning surface impurities in the passivation process, followed by annealing for improved ductility and stress relief, guarantees durable joints.
Forming and Machining
In fact, forming and machining austenitic steel tubing materials like ASTM A269 seamless stainless steel tubing call for high-precision tools and techniques to achieve necessary dimensional tolerances.
Installation and Maintenance Best Practices
Ensuring the reliability and efficiency of ASTM A269 TP304 and TP316L stainless steel tubing begins with proper installation and maintenance. Combined, these practices avoid compromising performance while providing superior durability and tending to consistently increase service life for both installation and maintenance applications.
Pay attention to best practices and stay on top of their long-term maintenance. This approach can significantly minimize the likelihood of failures that often result from human error.
Handling and Storage
Proper handling and storage of stainless steel tubing is key to maintaining corrosion resistance. Store tubing in a cool, dry place free of contamination. Keep it dirt contamination and moisture free from corrosion.
Use padded supports or non-abrasive material to avoid scratching or denting surfaces while being transported. For example, if tubing is left exposed to harsh chemicals or stored in a high-humidity environment, this can affect its corrosion resistance.
Covering the tubing with plastic caps or wraps can protect the ends from debris and dings, leading to improved performance down the line.
Cleaning and Passivation
Cleaning and passivation are essential for protecting the tubing from in-service corrosion. Clean all greases, oils, burning residue, or other foreign contaminants with appropriate cleaning materials.
Choose less aggressive detergents or alkaline cleaning agents. Following a thorough and effective cleaning, passivation improves the protective oxide layer in the tubing’s surface, making it even more robust under corrosive applications.
Consider, for instance, pharmaceutical manufacturing systems, where frequent descaling and passivation are necessary to prevent the presence of contamination and to comply with strict quality safety standards.
Inspection and Monitoring
Regular and proactive inspection keeps an eye out for early signs of wear, leaks or damage. Critical areas to keep an eye on are weld joints and high-stress areas.
Nondestructive testing (NDT) methods, such as ultrasonic testing, provide trustworthy information about the state of all tubing used in oilfields. Sticking to a proactive schedule of in-depth inspections keeps unexpected downtime to a minimum and lowers overall repair expenses.
Future Trends and Innovations
The stainless steel industry is making great strides to better the future with new advancements leading the way for the industry in alloy development, manufacturing processes, and sustainability efforts. These innovations are truly revolutionary for products such as ASTM A269 seamless stainless steel tubing and ASTM A269 TP316L tubing. They provide the accuracy and functionality that research and industry sectors, including defense and medical, demand.
Emerging Stainless Steel Alloys
Research and development of new stainless steel alloys is aimed at improving properties such as corrosion resistance, high temperature resistance and mechanical strength. These alloys with improved molybdenum compositions offer superior corrosion resistance in severe chemical settings. This technological change tremendously benefits the industries that support the oil and gas sector.
High-nitrogen stainless steels are becoming increasingly popular because of their improved durability. These unique properties impart the capability for creating lightweight aerospace components and medical implants. These novel materials enable the defense, aerospace and automotive industries to achieve greater performance levels. Heck, they even reduce maintenance needs, increasing long-term efficiency and saving costs.
Advancements in Manufacturing
The integration of precision tools and advanced machinery has significantly improved the quality and efficiency of stainless steel tubing production. With modern 3D printing or additive manufacturing, even the most intricate tube designs and test configurations can easily be produced. These techniques are highly specialized to narrow applications of the automotive sector and electric grid.
Automation adds another layer of efficiency, decreasing the margin of human error and guarantees a consistent result every time. For instance, the incorporation of IoT and AI enables real-time monitoring and process adjustments, streamlining operations while maintaining stringent quality standards. Innovative non-destructive testing methods, like ultrasonic inspection, minimize risk while maximizing product integrity and reliability.
Sustainable Material Choices
The increasing focus on sustainability pushes the use of greener practices in stainless production. The use of recycled materials is becoming more prevalent, decreasing resource consumption without compromising the long-term performance of products such as ASTM A269 tubes. This change not only promotes environmental objectives, but it responds to the growing call from industry to pursue greener, more sustainable solutions.
Innovative, energy-efficient manufacturing methods help to reduce the industry’s environmental footprint even more, illustrating the industry’s commitment to sustainability.
Conclusion
ASTM A269 TP304 and TP316L tubing provide reliable quality and performance in a wide range of industries. Their durability, corrosion resistance, and adaptability ensure they are rock solid choices for the most critical applications. TP304 performs pleasantly in typical conditions, whereas TP316L performs like a champ in more severe surroundings. From production of sanitary tubing to boiler applications, these materials offer dependability and durability for the long haul.
Having a grip on their fabrication, installation and ongoing maintenance leads to the best possible results. Adhering to best practices during design, execution, and maintenance phases ensures the highest possible performance and sluicegate lifespan. As technology and materials march forward, these tubing solutions can only become better suited to supply industries’ ever-changing requirements.
Whether you’re in the process of choosing tubing or just doing your research, it’s important to be up-to-date. Explore further specs or talk to an expert to make sure you get the right one for your project requirements.
Frequently Asked Questions
What is ASTM A269?
ASTM A269 is the standard specification for seamless and welded austenitic stainless steel tubing. It is mainly used for general corrosion-resisting services and low- or high-temperature applications.
What does TP304 and TP316L mean in ASTM A269?
TP304 and TP316L refer to specific grades of austenitic steel tubing. While TP304 is the standard general-purpose grade of stainless steel tube, TP316L offers enhanced resistance, thanks to its molybdenum content and lower carbon level, making it ideal for various piping applications.
How does TP304 differ from TP316L?
TP304 boasts good overall corrosion resistance and is relatively inexpensive, while ASTM A269 TP316L’s increased resistance to chlorides makes this austenitic steel tubing more desirable for applications in marine or chemical fields.
Where are ASTM A269 TP304 and TP316L typically used?
Industries such as food processing, chemical manufacturing, oil and gas, and pharmaceuticals depend on ASTM A269 seamless stainless steel tubing for tubing applications, requiring durability and good corrosion resistance to withstand brutal conditions.
Can ASTM A269 tubing be used for sanitary applications?
A269 tubing, particularly the ASTM A269 seamless stainless steel tubing, works great for sanitary usage. ASTM A270 is the superior option because it was specifically designed for clean industries such as food, beverage, and pharma.
Is welding possible with TP304 and TP316L?
Are TP304 and TP316L weldable? TP316L, an austenitic steel tubing, has a lower carbon content to avoid carbide precipitation corrosion, which occurs in welded materials, decreasing the chances of corrosion after welding.
What are the maintenance tips for ASTM A269 TP304 and TP316L tubing?
Daily cleaning and inspection of austenitic steel tubing help avoid rust formation and soil accumulation. Secondly, use a cleaner designed for stainless steel tube to handle its surface correctly and prevent scratching.
